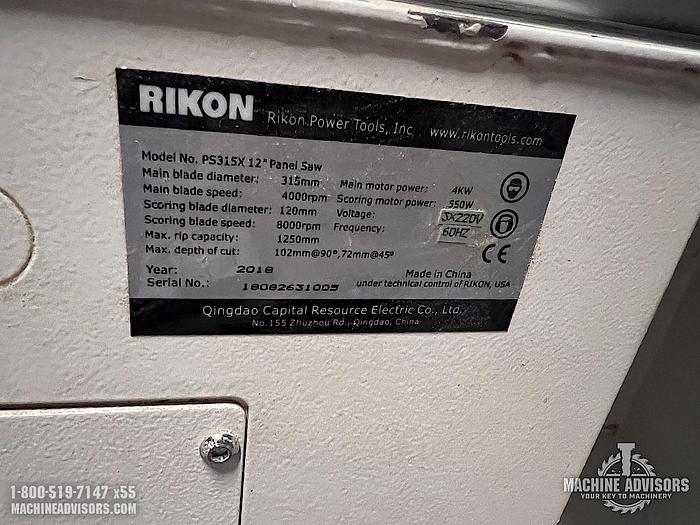

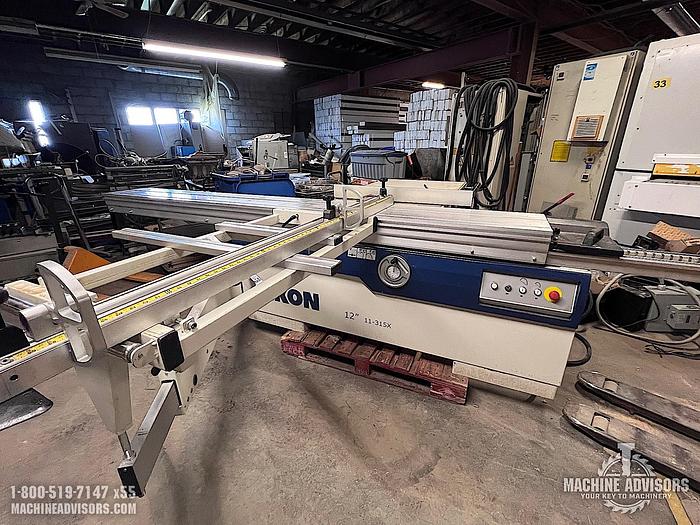

2018 Rikon PS315X 12" Sliding Table Saw

The 11-315X panel saw is the starting point of the RIKON industrial sliding table saws. The new manufacturing techniques, continuous research and development coupled with advanced design solutions are all factors that ensure that the 11-315X can offer outstanding accuracy, quality and value.

Features

• The cast iron table and massive steel frame give extra support for stability and reduced vibration
• Large section profile cross cutting fence with reversible fence stops
• Extended fence with low profile edge adjusts for thin material cutting
• Roller guide sliding along tempered and ground prismatic guides guarantees smooth and precision sliding cutting

Motors

• Motor: 5.5 HP, 14 Amps, 220V/60Hz/3Ph, 2800 RPM
• Scoring Motor: 1 HP, 3.2 Amps, 220V/60Hz/3Ph, 0.55kW S1 Output, 2800 RPM

Panel Saw

• Main Blade Arbor: 30mm
• Main Blade Diameter: 12 inch
• Main Blade Speed: 4000 RPM
• Blade Tilt: 0-45 deg.
• Max Depth of Cut at 45 deg: 2-11/16 inch
• Max Depth of Cut at 90 deg: 3-1/2 inch
• Scoring Blade Arbor: 20mm
• Scoring Blade Diameter: 3-3/4 inch
• Scoring Blade Speed: 8000 RPM
• Maximum Rip Capacity: 49-1/4 inch
• Sliding Beam Size: 126 x 14 inch
• Sliding Beam Cutting Capacity: 126 inch
• Dust Extraction Outlet: 4 inch
• Table Size: 31-1/2 inch (20-7/8 inch + 32-1/4 inch)
