Biesse Rover B 1650 Edge - 5 Axis CNC Router - Contour Edgebander Pod and Rail

Biesse Rover B 1650 Edge - 5 Axis CNC Router - Contour Edgebander Pod and Rail

Working fields :

Routing: X = 5055 mm; X (pendular) = 195 mm Y = 1650 mm - Z = 200 mm;

W. Edgebanding: X edge = 4100 mm - X edge (pendular) = 1000 mm - Y edge = 1650 mm - Z edge = 60 mm

Loadable piece:

Y = 1650 mm loadable piece 60 mm with all the units

Y = 1600 mm loadable piece 200 mm with all the units

The base machine includes:

• 6 ATS working tables - L = 1575 mm - 18 sliding bases
• Reference stops equipped with pneumatic system
• 6 rear stops Y = 0 mm
• 6 front stops Y = 1473 mm
• 2 LH side stops on fixed bar
• 2 RH side stops on repositionable bar
• 4 Lifting bar supports

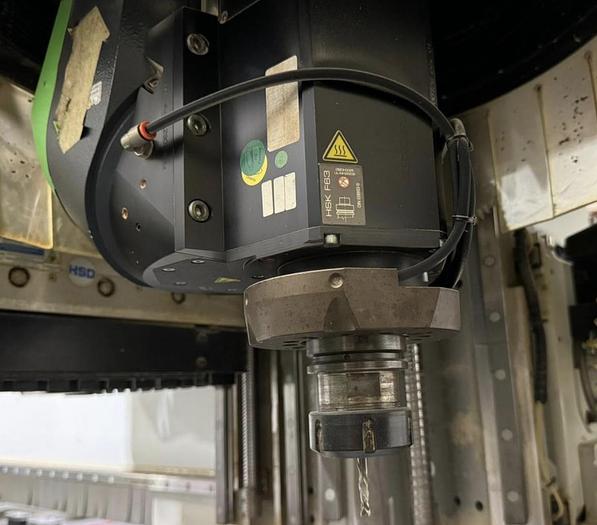

• 13 kW (17,4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling
• Heat exchanger unit for liquid cooled systems
• Flange for the assembly of aggregates on an operating unit with 5 interpolating axis
• 1 Inverter

Main specifications:

E.P.S electronic positioning working tables - L = 1575 mm - 18 sliding bases.

The working area is composed of:

- 6 aluminum panel supports. The supports slide on hardened and prismatic linear guides by means of ball bearings. The locking takes place on both the front and the back linear guide, by means of 2 pneumatic cylinders, and is controlled through a push-button placed in front of the panel support
