2021 Cefla PF PIEFFE L 6 TIER OVEN

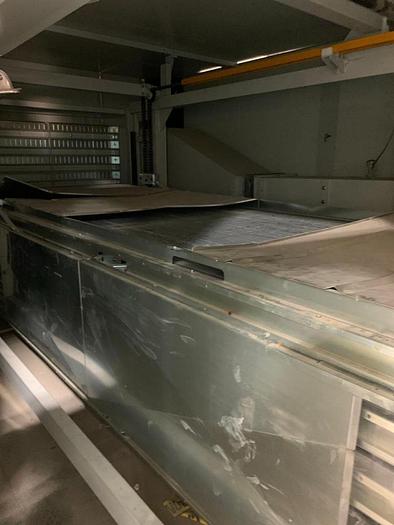

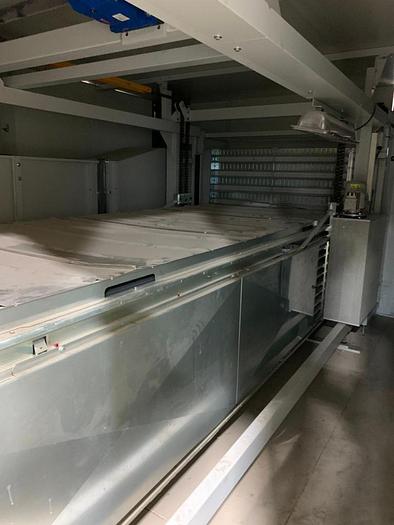

2021 CEFLA PF PIEFFE L MULTI TIER HOT AIR OVEN

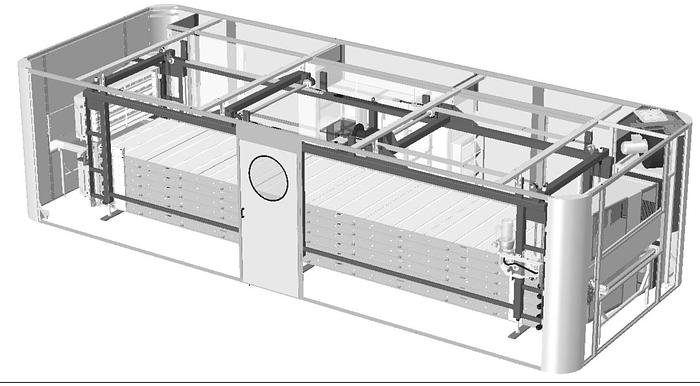

Pieffe delivers the functions of an in-line oven 44.4 metres (145') long within just 7.4 metres (24'), thanks to a stacked 6 tray belt system.

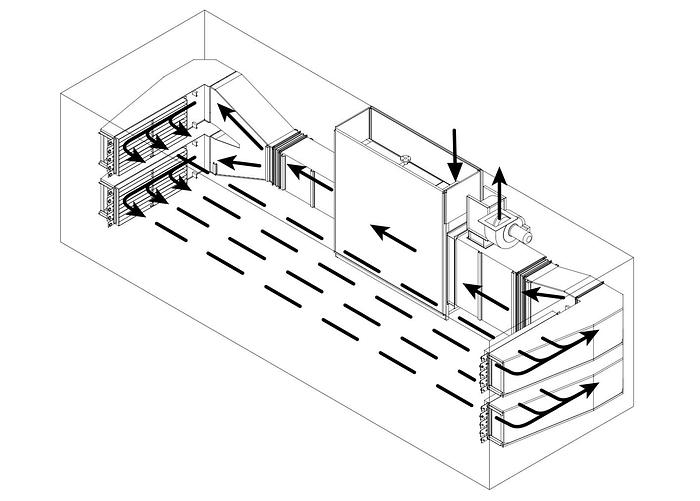

Air inlet and recycling fan with air intake from the room. Heating exchanger with automatic temperature adjustment. Air exhaust fan with adjustable flow rate. Motorized trays with bottom diaphragm. Sandwich panelling structure. Air diffusion box placed at infeed and outfeed. Automatic opening shutter, oriented on the trays in order to create a longitudinal air flow. 2 connection motorized roller elements, placed at infeed and outfeed. Photocell barrier at infeed.
