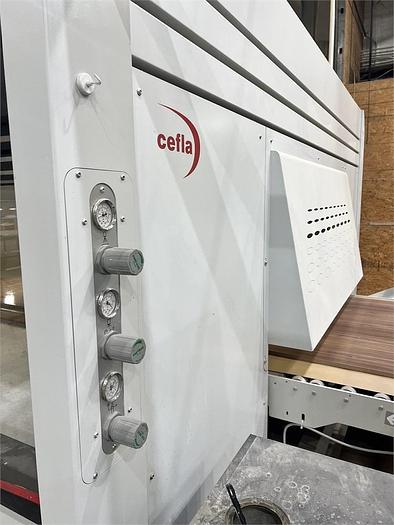

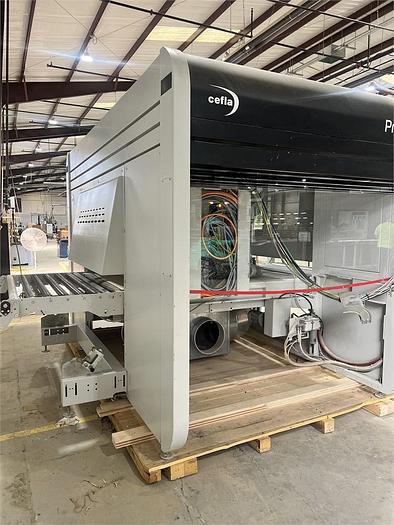

2020 Cefla Prima Single Arm Spray Machine

2020 Cefla Prima Single Arm Spray Machine

Used for 1 1/2 Year Only

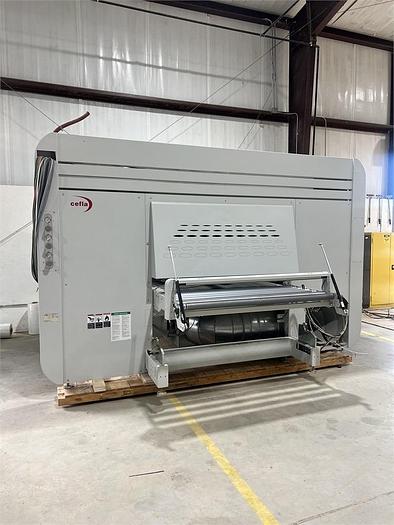

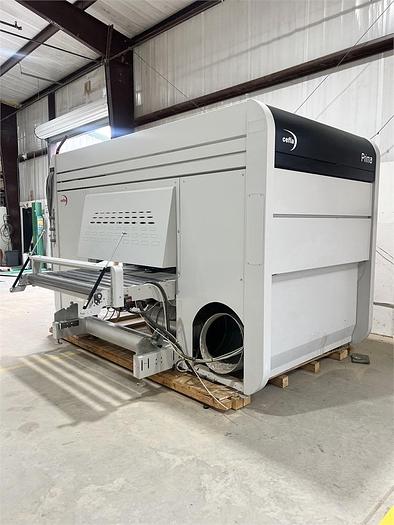

Machine designed with a solid structure- LASER 3D complete with wide glass access doors.

photodiodes.

Infeed reading system optimizing the spraying width by means of scanning barrier 68

Working width

1300 mm

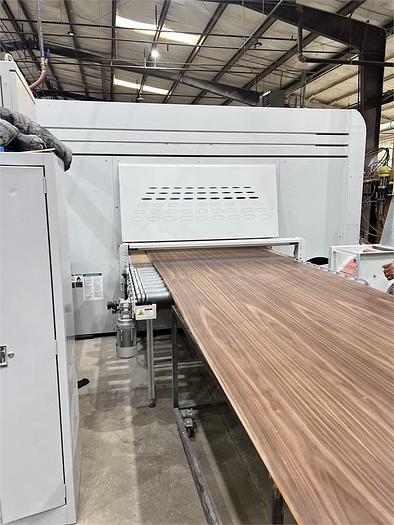

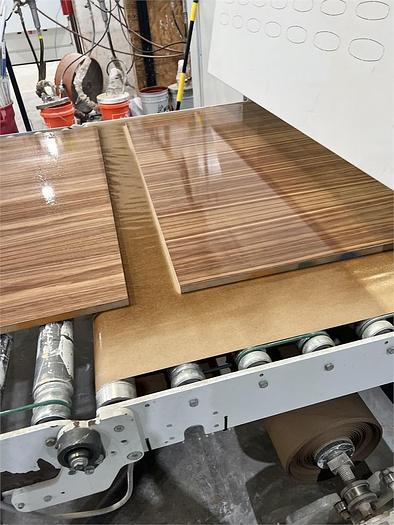

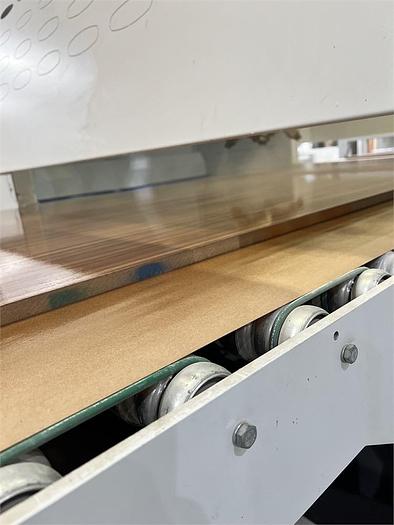

Vacuum belt conveying system with continuous, disposable paper belt.

Paper tension controlled by pneumatic system.

Easily removable paper spools with 2500 m max

Ambient air inlet from the machine roof.

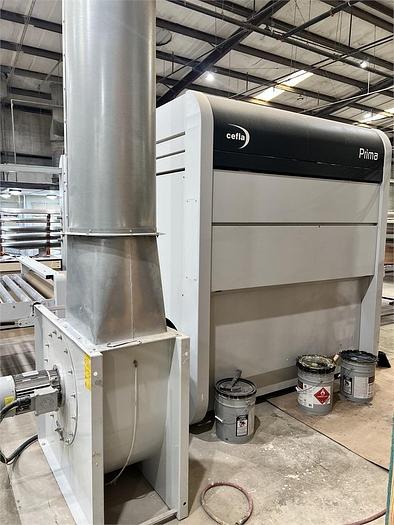

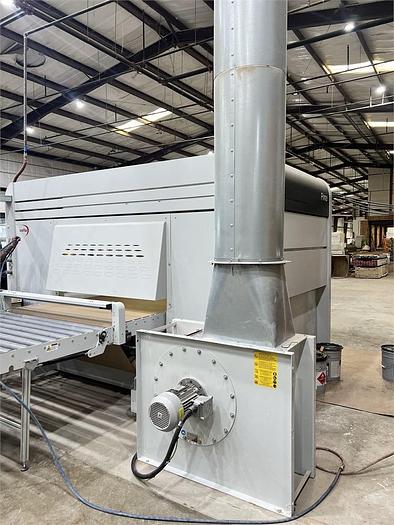

Overspray exhaust through double downdraft filtration dry filters, placed at conveyor sides and mounted on extractable tank.

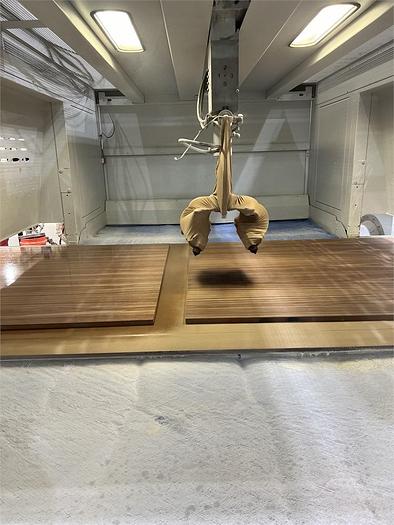

Spraying axis driven by brushless motor and timing belt with ball bearings.

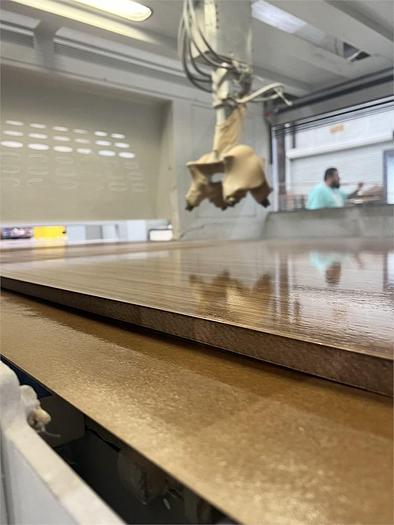

The central axis carries one fixed gun support arm complete of height adjustment manual set up.

Predisposition for 4 guns mounts max (guns and pump excluded)

Four high pressure coating feeding circuits with recirculation and coating filter with stainless steel fittings.

(3 Colors + 1 Solvent)

Manual valves for color change.
