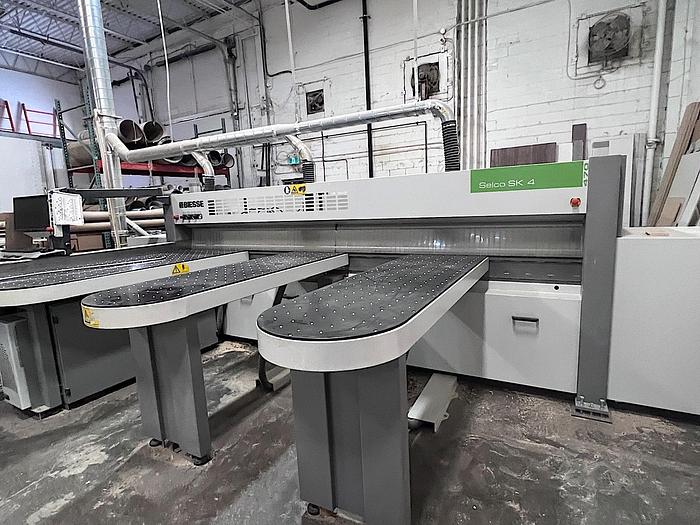

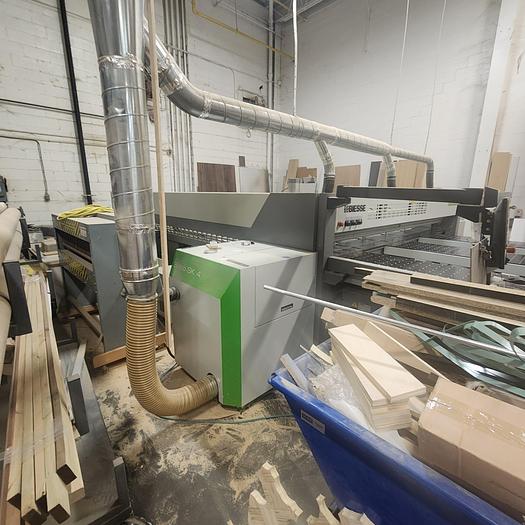

2018 Biesse SK4 CNC Front Load Panel Saw

2018 Biesse SK4 CNC Front Load Panel Saw

Parameters cutting 3200 x 3200 mm

Max eject the saw 75 mm

Max grabs opening 65 mm

Table height 985 mm

Saw motor main 7.5 kW / 50 Hz (10 HP) - 9 kW / 60 Hz (12 HP)

Saw motor undercutting 2.2 kW / 50 Hz (3 HP) - 2.6 kW / 60 Hz (3.6 HP)

System QUICK CHANGE

Brushless motor driving the saw carriage speed of 1 - 120 m / min

Brushless motor for driving the push rod maximum speed of 60 m / min

1 Main saw ø 320 mm

1 saw undercut ø 200 mm (trapezoidal teeth)

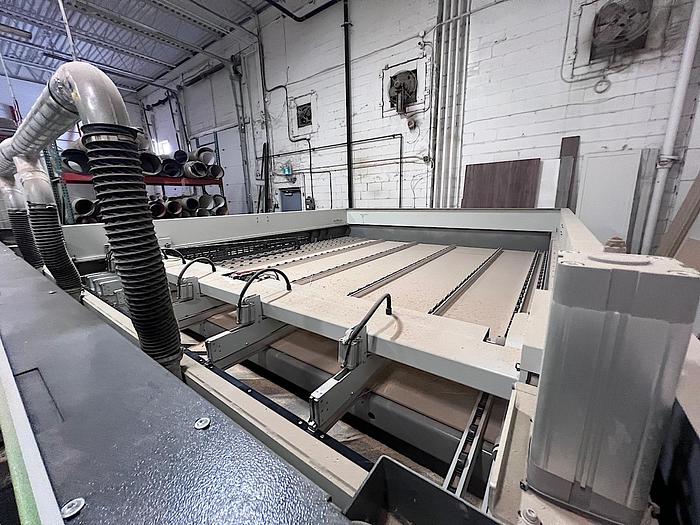

6 the pneumatic grippers (50 - 150 - 360 - 1530-2280 - 3030 mm)

1 units. Standard Round air table 2050 x 620 mm, - the operating side: the left

One fan for up to 6 tables

9 modules roller diameter of 50 mm, the pusher table

CONTROL

Numerical Control PC with Windows operating system

ACCESSORIES

Rounded, discharge air table of dimensions. 2050 x 620 mm
